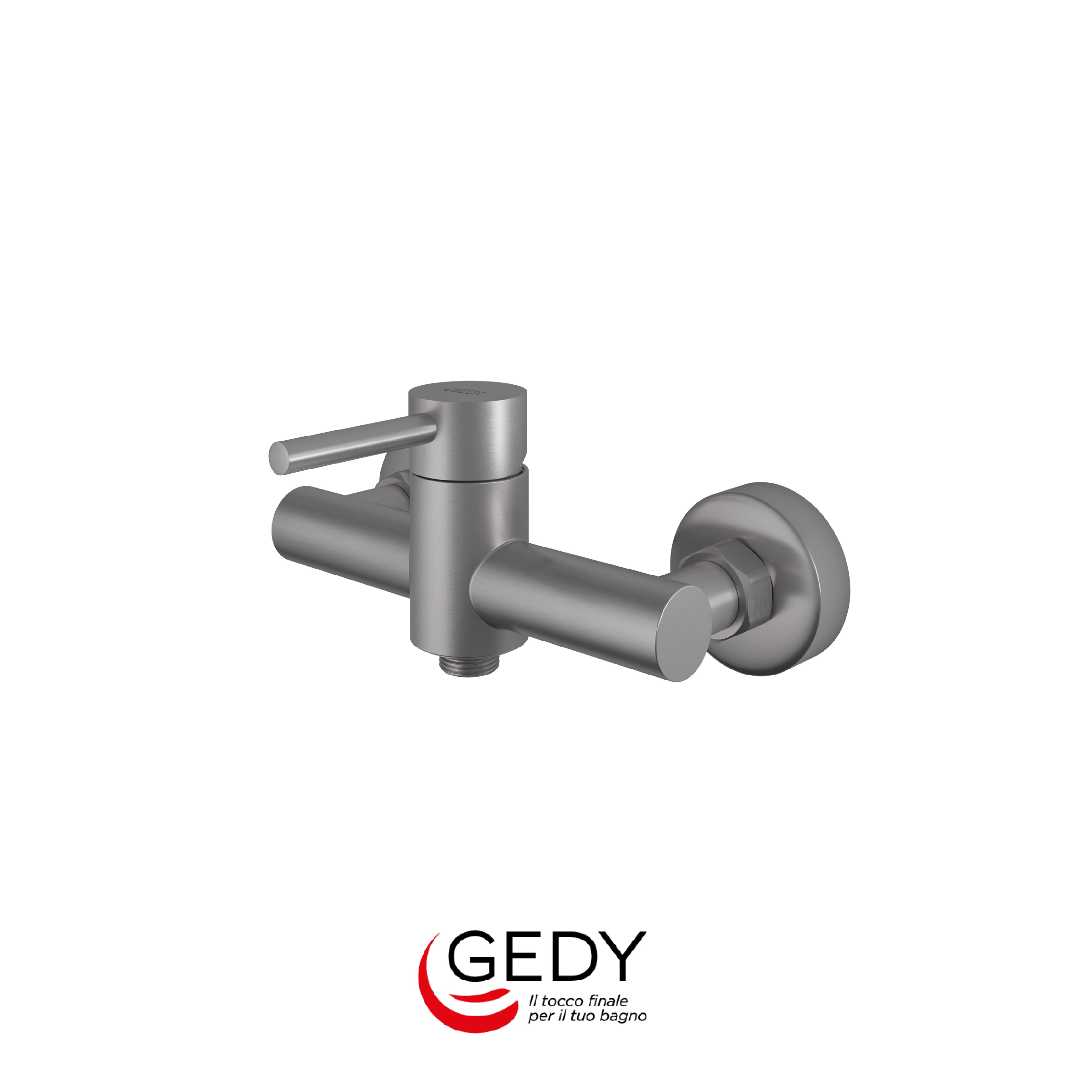

GEDY Garda - External single-lever shower mixer

GEDY Garda - External single-lever shower mixer

GEDY Garda - External single-lever shower mixer Technical note : If you have any problems viewing the descriptions or visual content, please contact support at: support@imhoffhandles.it

Materials

Main body: AISI 304 stainless steel

Handle: zama with AISI 304 stainless steel handle

Cartridge: ceramic discs, plastic body

Index cap: in ABS

Eccentric covers: in AISI 201

Eccentrics: in brass

Other features

The article consists of the following elements:

• External single-lever shower mixer

• Integrated cartridge: manual mixing ø 35 mm

• Eccentric fittings with reducer: from G 3/4” to G 1/2”

• Eccentric covers: Ø 60 mm

Installation type: external wall

G 1/2” connections

Water inlet centre distance for installation: 150 ± 20 mm

It does not come with shower accessories

Attention: the cartridge is a single body that runs through

the entire main cylinder of the mixer acts as a support

to the handle at the top and screws into the attachment

threaded at the bottom. The cartridge is then fixed

to the mixer both in the lower and upper part.
