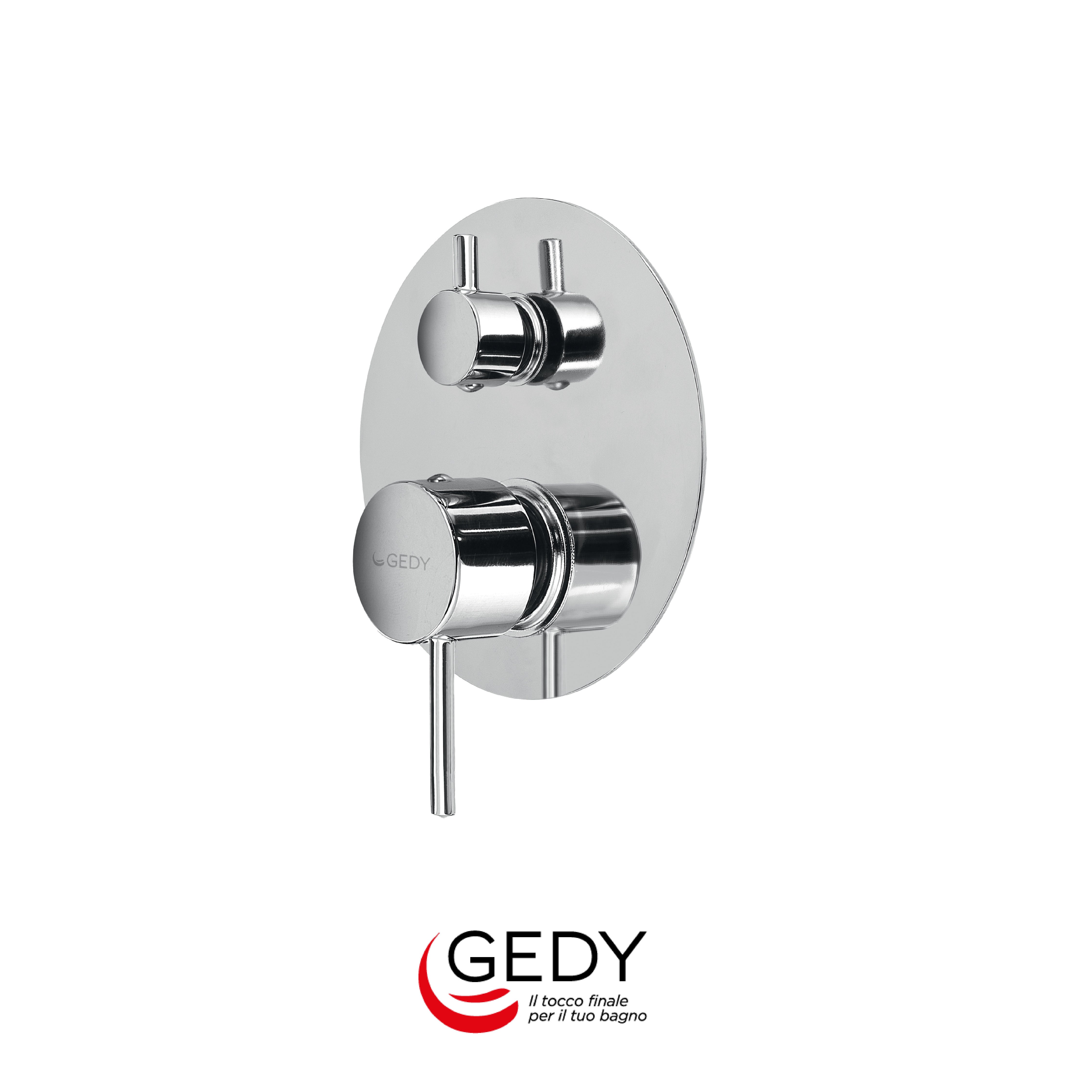

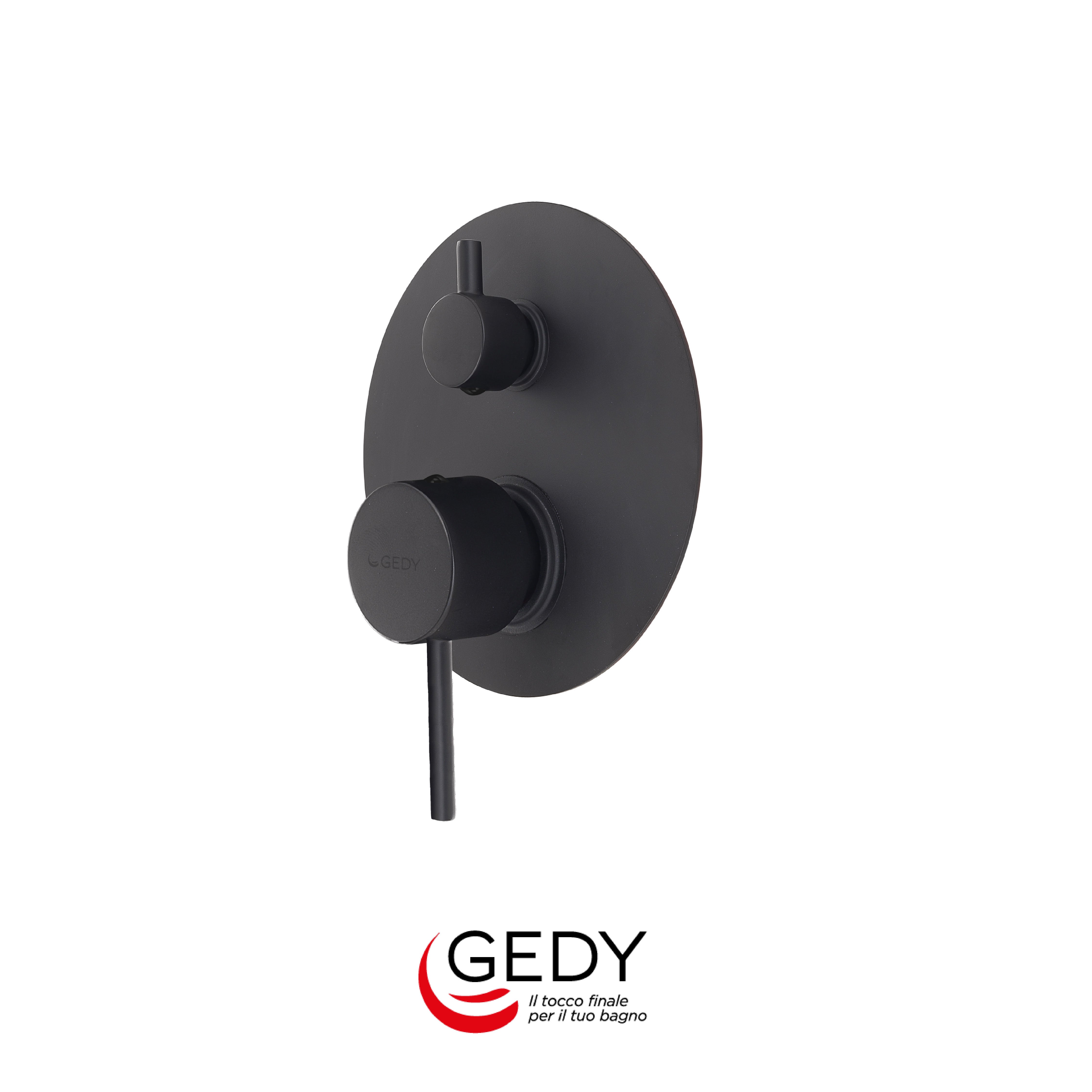

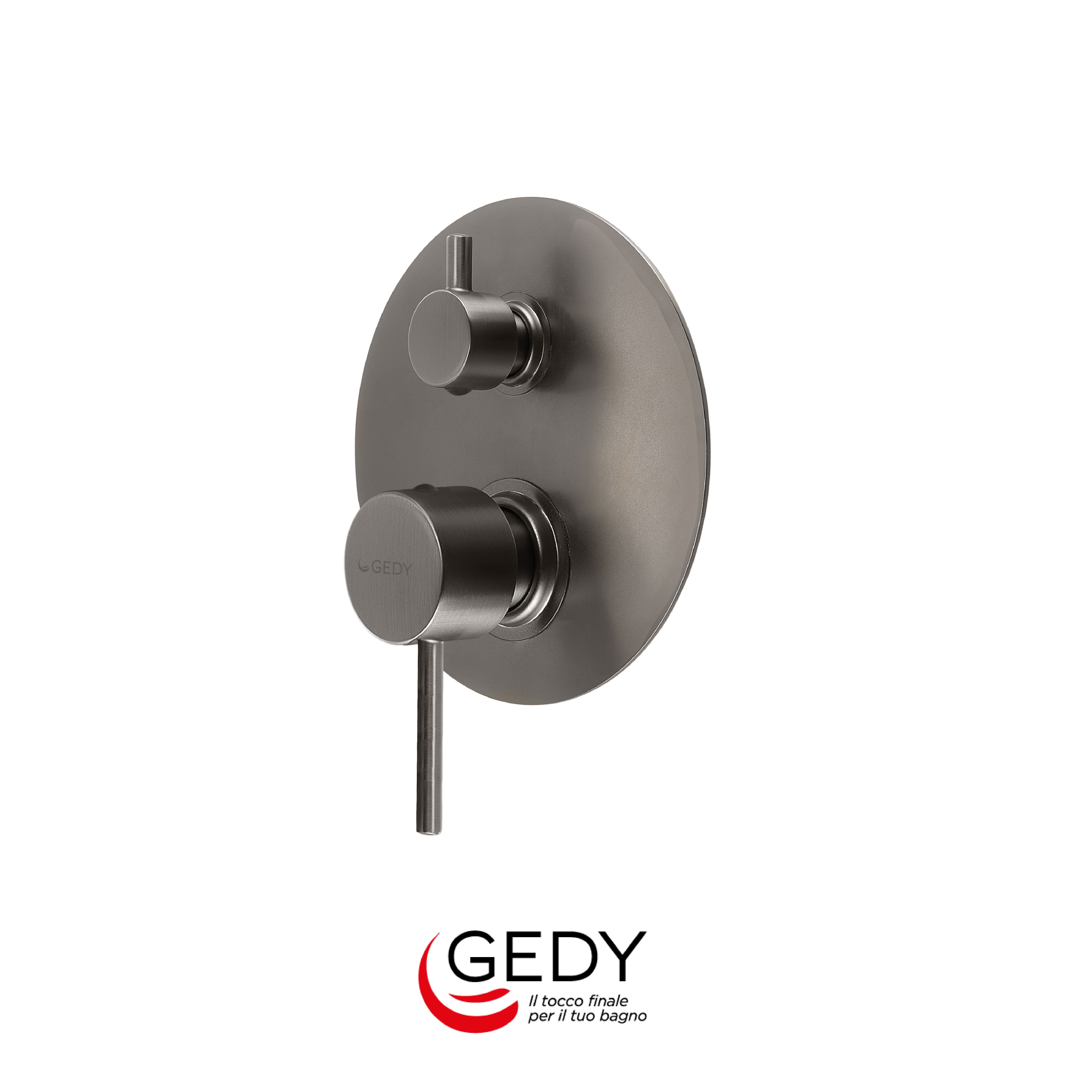

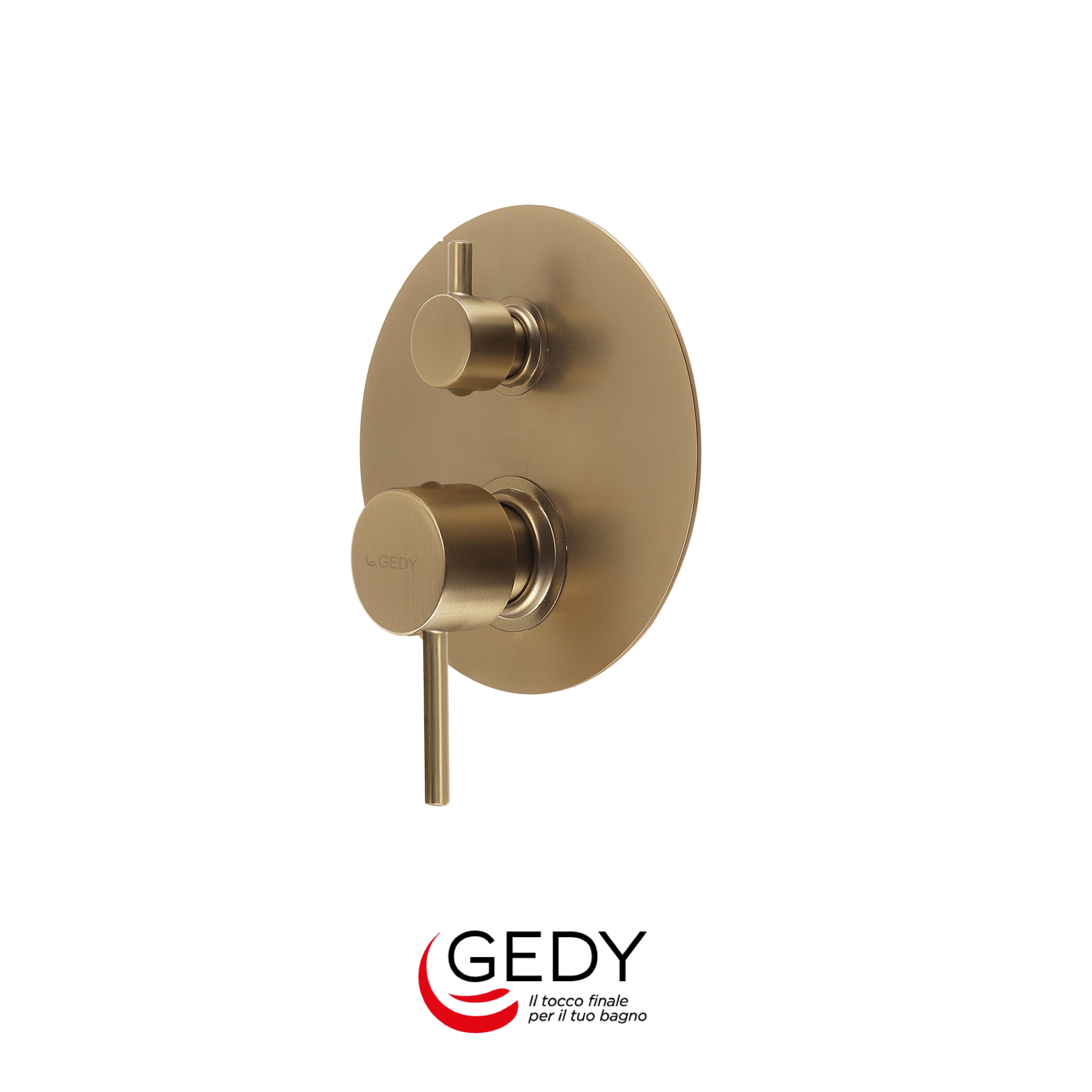

GEDY Garda - Built-in single-lever shower mixer with 2-way diverter

GEDY Garda - Built-in single-lever shower mixer with 2-way diverter

GEDY Garda - Built-in 2-way single-lever mixer Technical note : If you have any problems viewing the descriptions or visual content, please contact support at: support@imhoffhandles.it

Materials

Inner body: brass

Handles: AISI 304 stainless steel

Cylinders: brass

Cartridge: ceramic discs, plastic body

Diverter cartridge: brass

Index caps: in ABS

Disc: AISI 304

Positioning shell: ABS

Installation cover: PP

Other features

The article consists of the following elements:

• 2-way built-in single-lever mixer

• Cartridge: manual mixing ø 35 mm

• Diverter cartridge: ø 22 mm

• Cover disc: thickness 2 mm

• Body: external body for wall mounting

• Protective body cover: with integrated spirit level for

make installation easier

• 4 screws with dowels

Installation type: wall-mounted

G 1/2” connections

Minimum depth for installation: 73 mm

Minimum dimensions for the wall mount: 100 x 160 mm

It does not come with shower accessories
