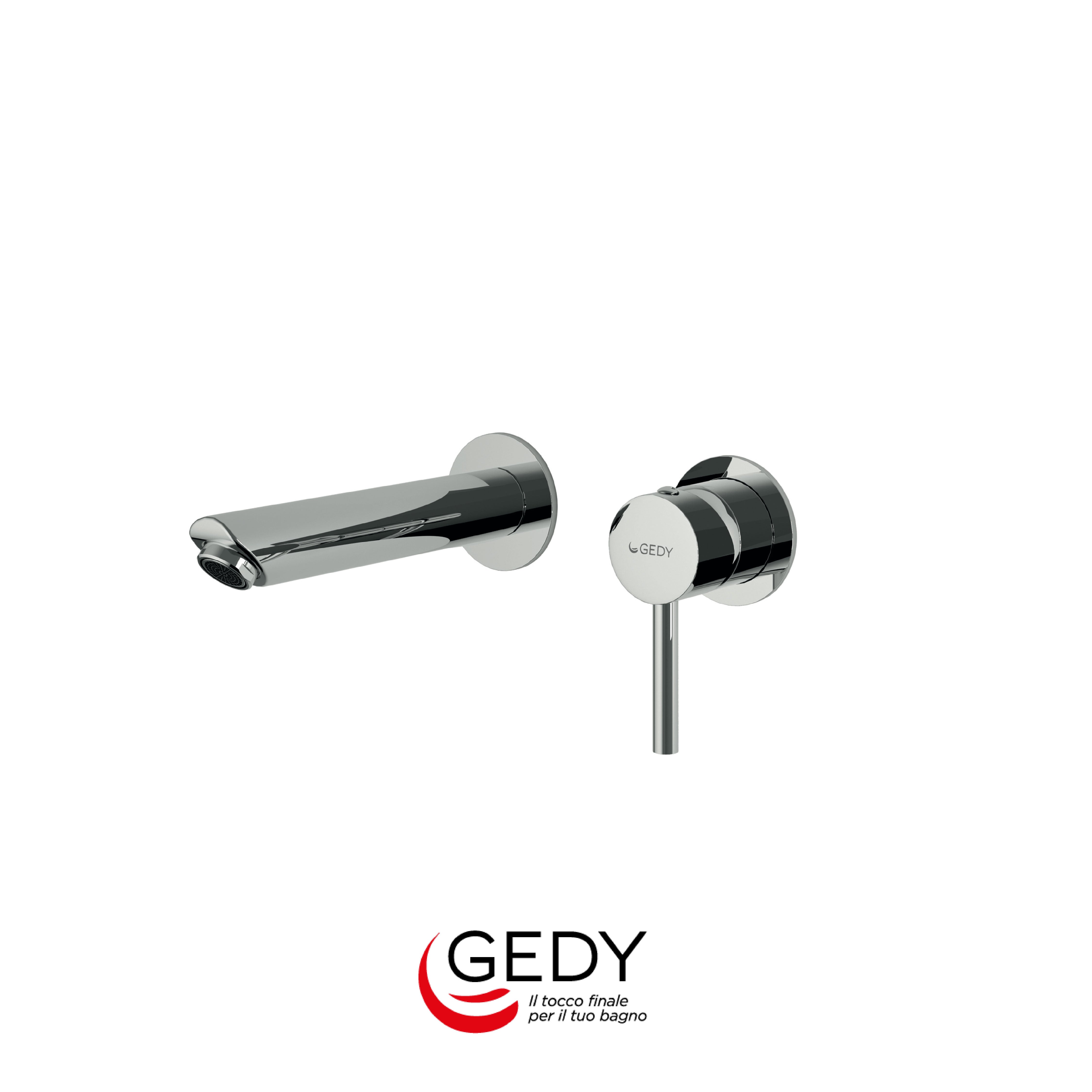

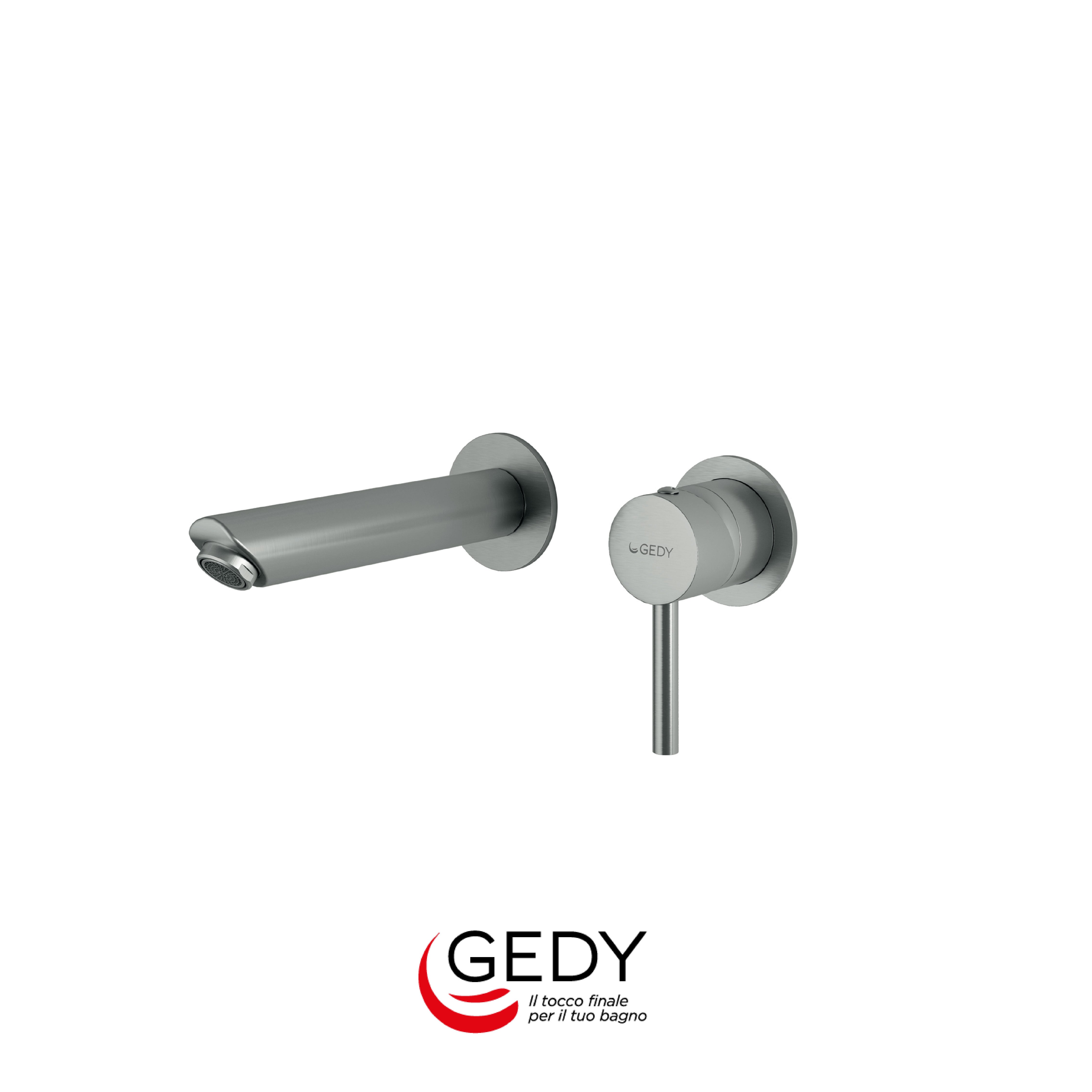

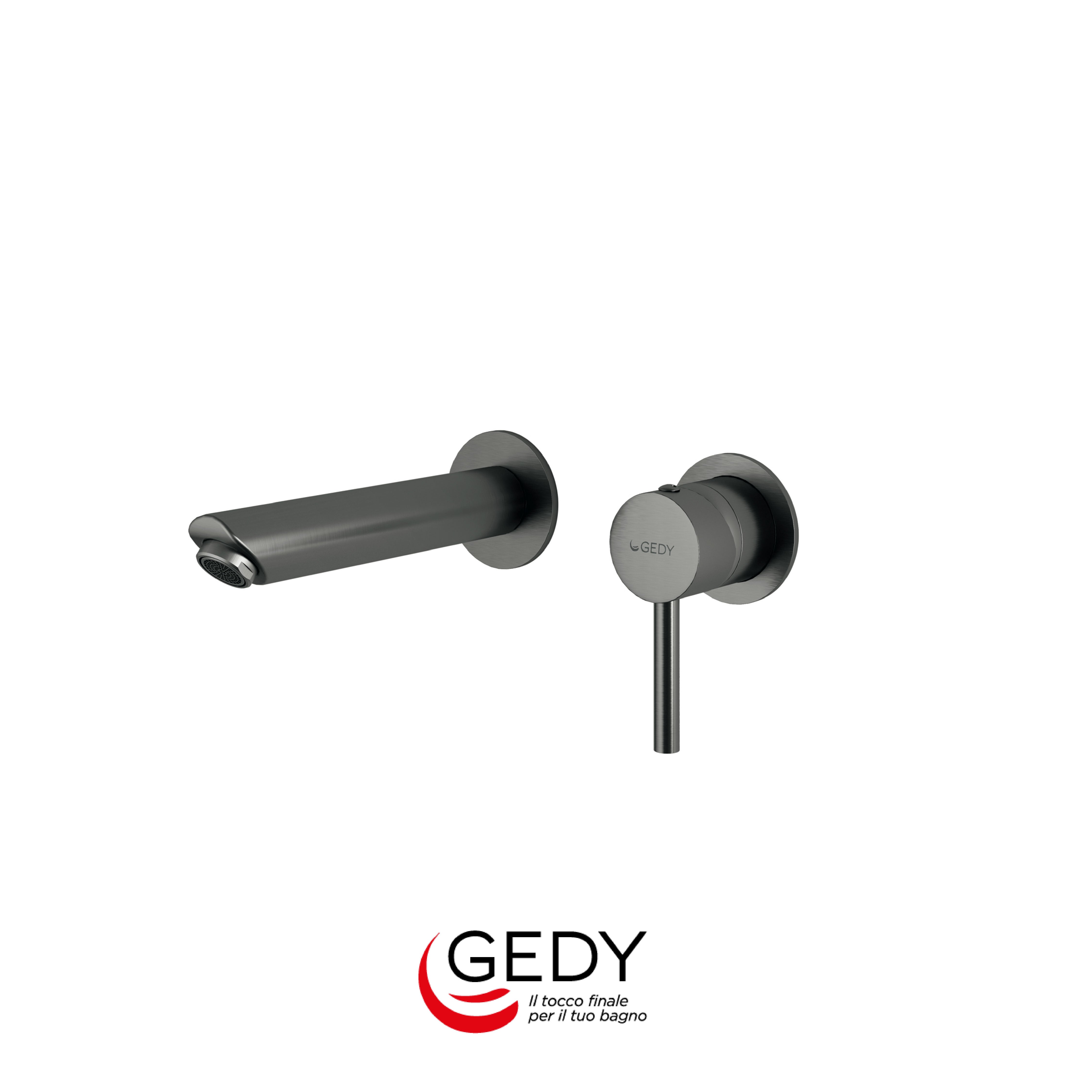

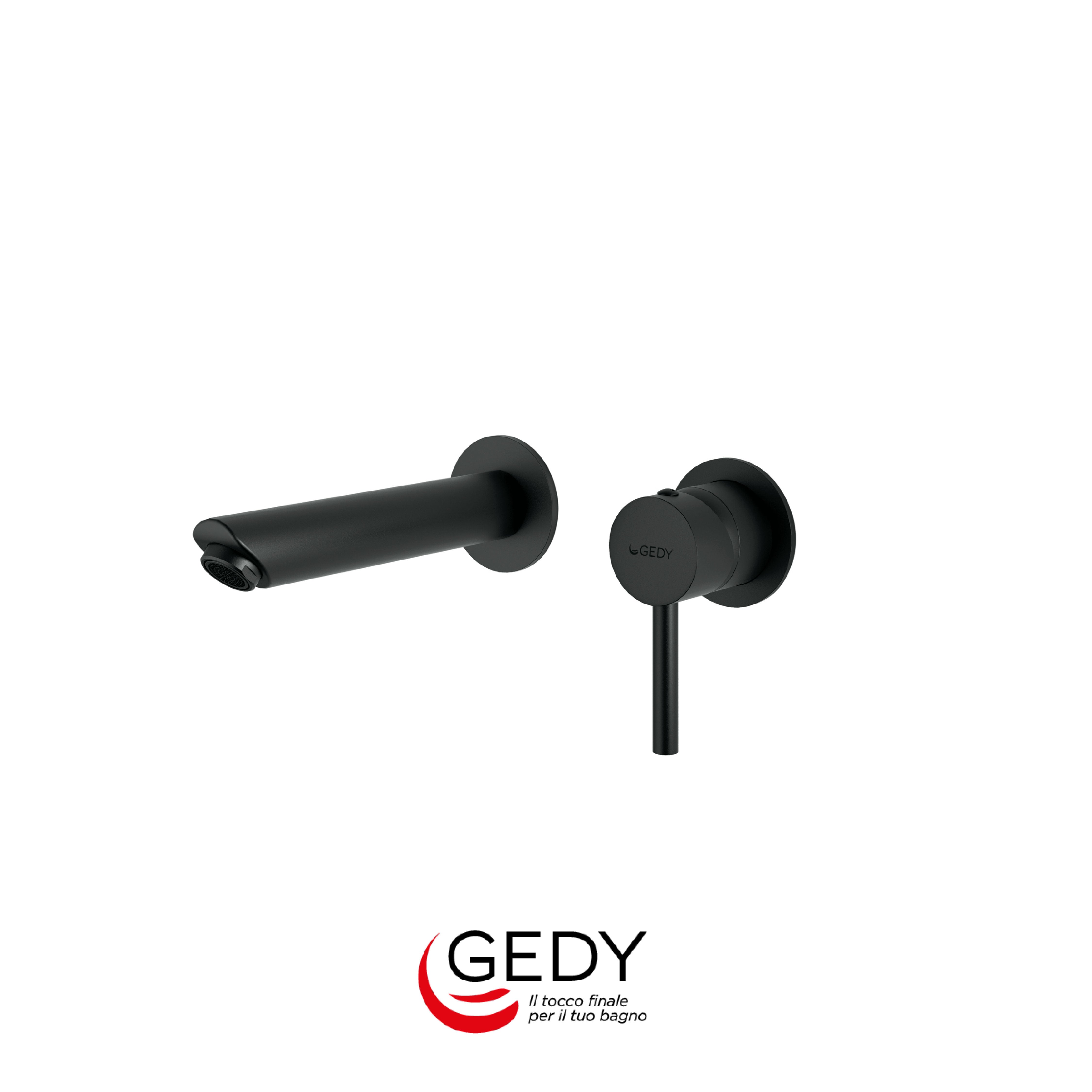

GEDY Garda - Wall-mounted basin mixer

GEDY Garda - Wall-mounted basin mixer

GEDY Garda - Wall-mounted basin mixer Technical note : If you have any problems viewing the descriptions or visual content, please contact support at: support@imhoffhandles.it

Materials

Inner body: brass

Handle: AISI 304 stainless steel

Brass spout

Cartridge cylinder: brass

Cartridge: ceramic discs, plastic body

Index cap: in ABS

Hole cover discs: AISI 304 stainless steel

ABS aerator

Aerator disc in AISI 304 steel

Positioning shell: ABS

Installation cover: PP

Other features

The article consists of the following elements:

• Fixed spout

• Mixer body: manual single-lever

• Mixer with single-lever knob

• Cartridge: manual mixing ø 35 mm

• Cover discs: Ø 60 mm, thickness 4 mm

• Body: external body of the wall recessed fixture

• Protective body cover: with integrated spirit level for

make installation easier

• 4 screws with dowels

Installation type: wall-mounted

G 1/2” connections

Minimum depth for installation: 60 mm

Minimum dimensions for the wall mount: 105 x 230 mm

Available with a single AISI 304 stainless steel mixer body cover plate sold separately
