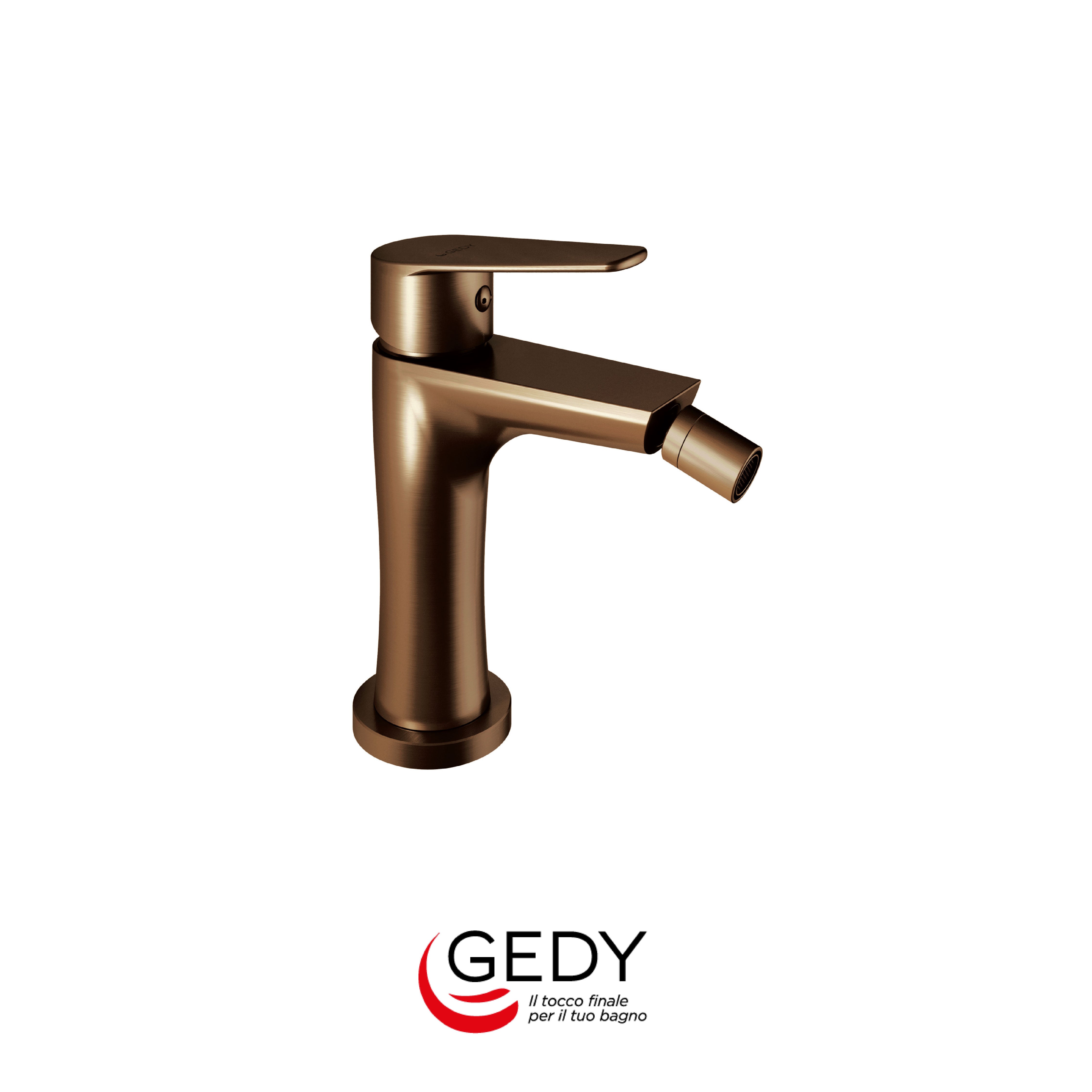

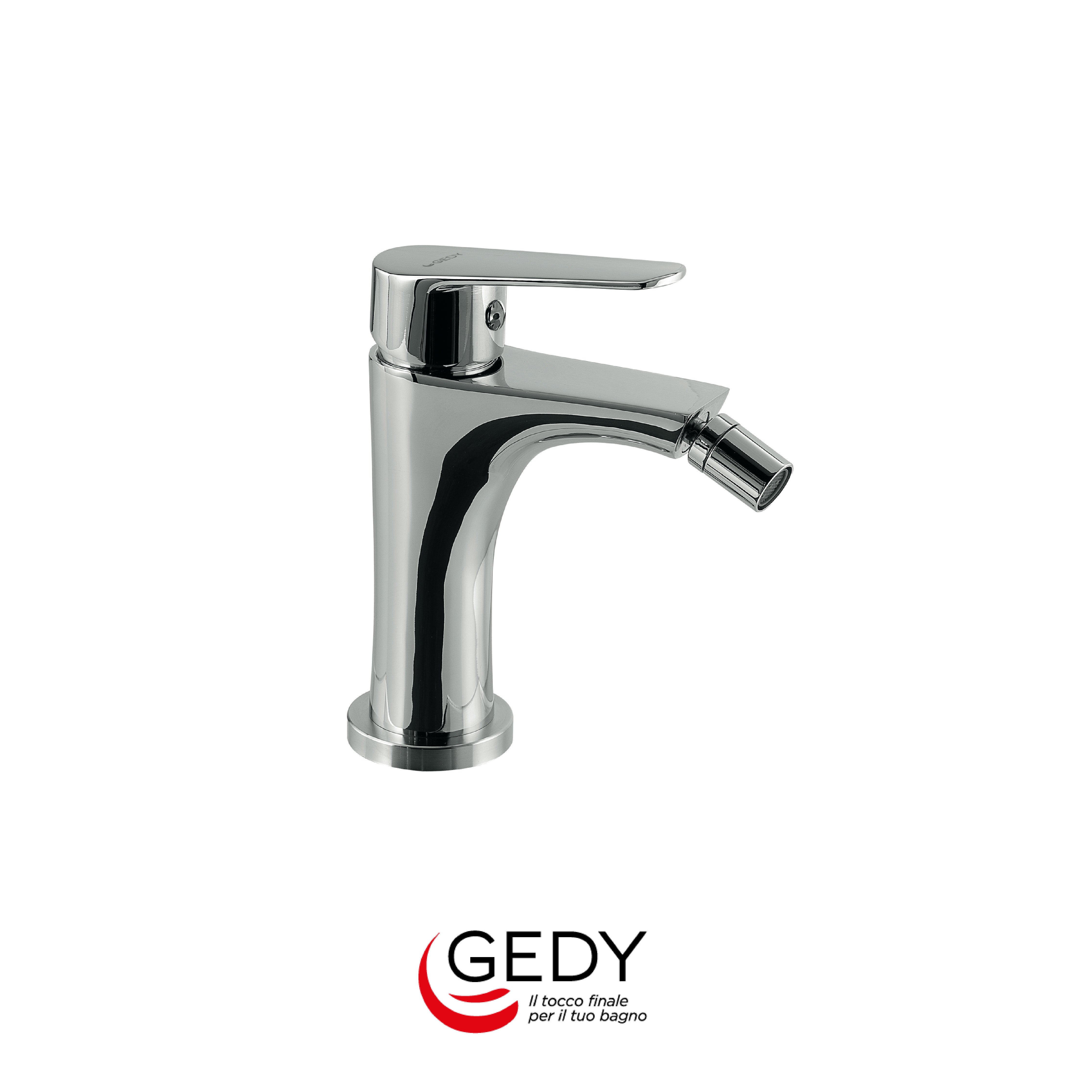

GEDY Como - Low-profile single-lever bidet mixer

GEDY Como - Low-profile single-lever bidet mixer

GEDY Como - Low single-lever bidet mixer Technical note : If you have any problems viewing the descriptions or visual content, please contact support at: support@imhoffhandles.it

Materials

Main body: brass

Handle: zama

Aerator: in ABS

Aerator crown: brass

Cartridge: ceramic discs, plastic body

Index cap: in ABS

Base: in AISI 201 and rubber

Threaded tube: in AISI 201

Clamping nut: brass

Flexible hoses: AISI 304 braided hose, inner tube

in EPDM with AISI 304 nuts

Other features

The article consists of the following elements:

• Single-lever bidet mixer with low spout

• Integrated cartridge: manual mixing ø 35 mm

• Threaded pipe with clamping nut for installation

• 2 Flexible hot water connection pipes and

cold, length 50 cm with side connections

G 1/8” male mixer and inlet side connections

water G 3/8” female

Fixed spout and 30° adjustable aerator

Installation type: freestanding

Maximum installation support thickness: 35 mm
